34+ Digital Voltmeter And Ammeter Connection PNG. (see figure 3, where the ammeter is. Ammeter and voltmeter both devices are used in an electrical circuit to measure different aspects of electricity.

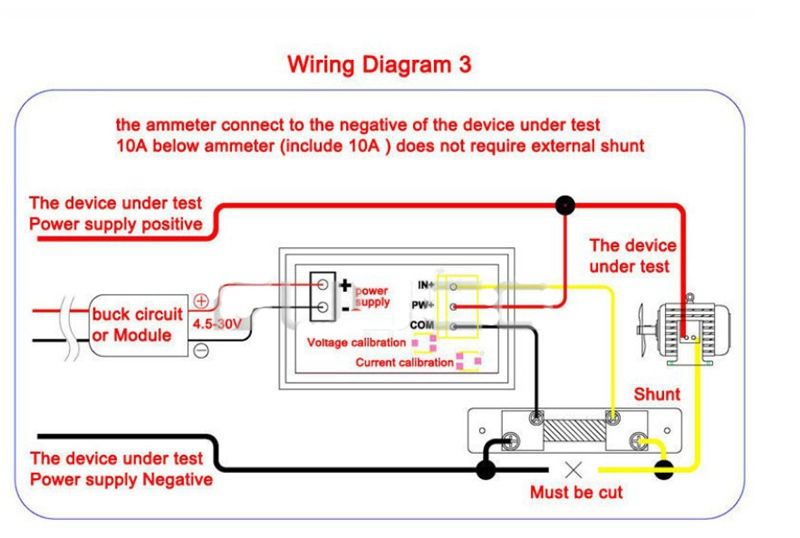

DC 0-30V 10A Voltmeter Ammeter Blue+Red LED Panel Amp ... from i1186.photobucket.com It is present in both, digital and analogue form. An interesting and accurate digital voltmeter and ammeter circuit has been explained in the present article which can be easily built at home. On the other hand, a voltmeter is connected in parallel with the circuit whose voltage is to be measured;
I did find a diagram but the link wont past in and it is too long so i'll try to explain.
Though most modern meters have solid state digital readouts, the physics is more readily demonstrated with a moving coil current detector called a galvanometer. However, in case of ammeter (ampere meter), most of this small current will flow through the shunt. Series multiplier resistors are used to give voltmeter movements higher range, and parallel shunt. Which circuit diagram below correctly shows the connection of ammeter a and voltmeter v to measure the current through and potential difference across resistor r?
